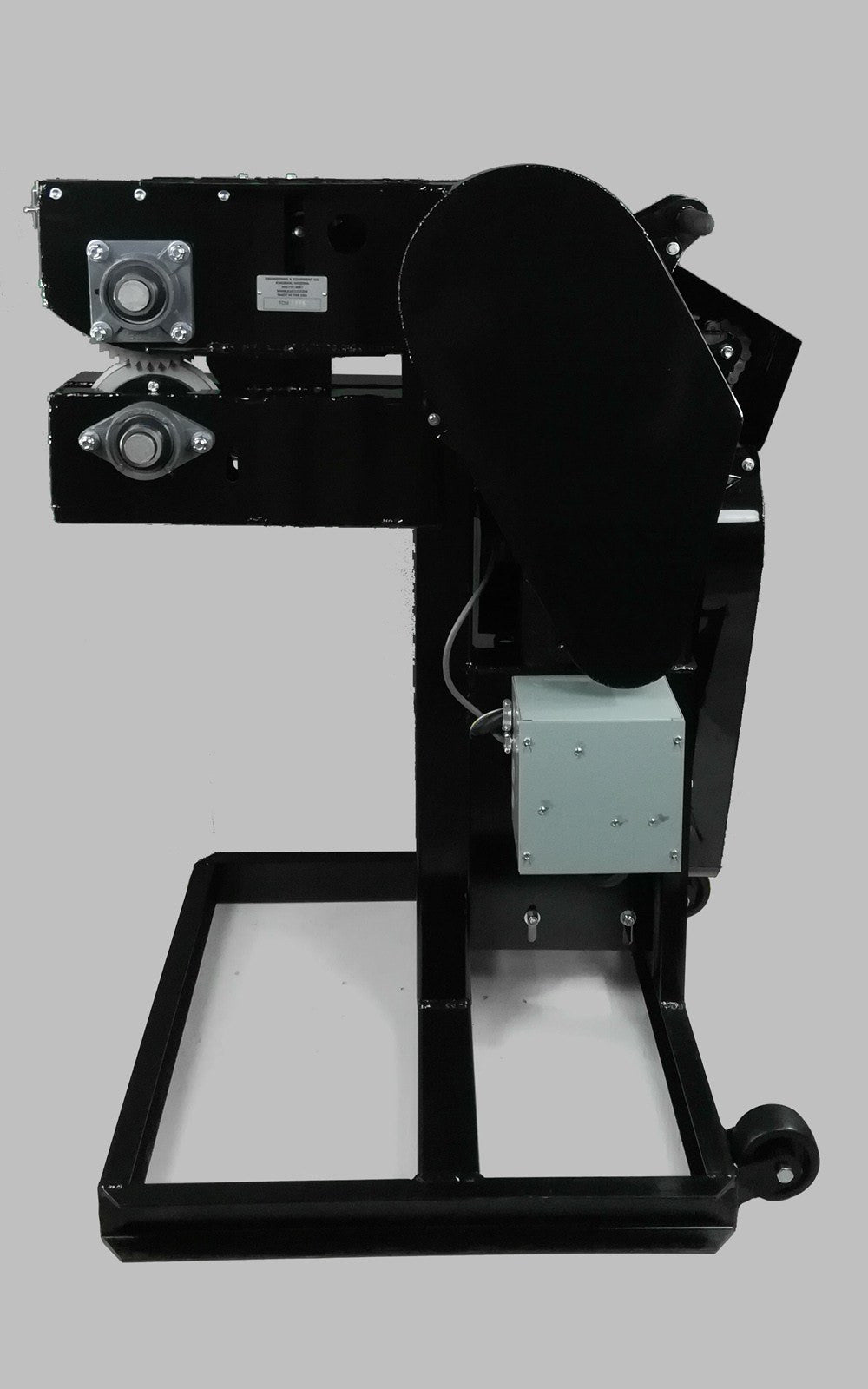

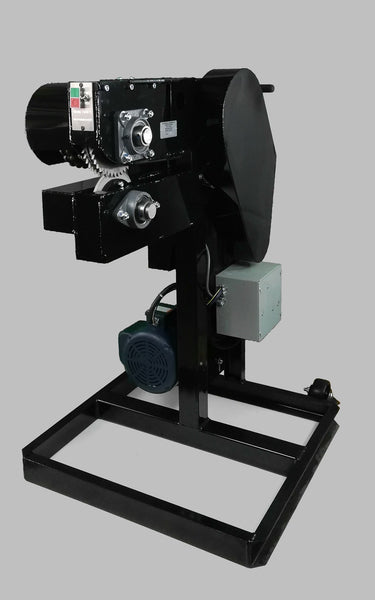

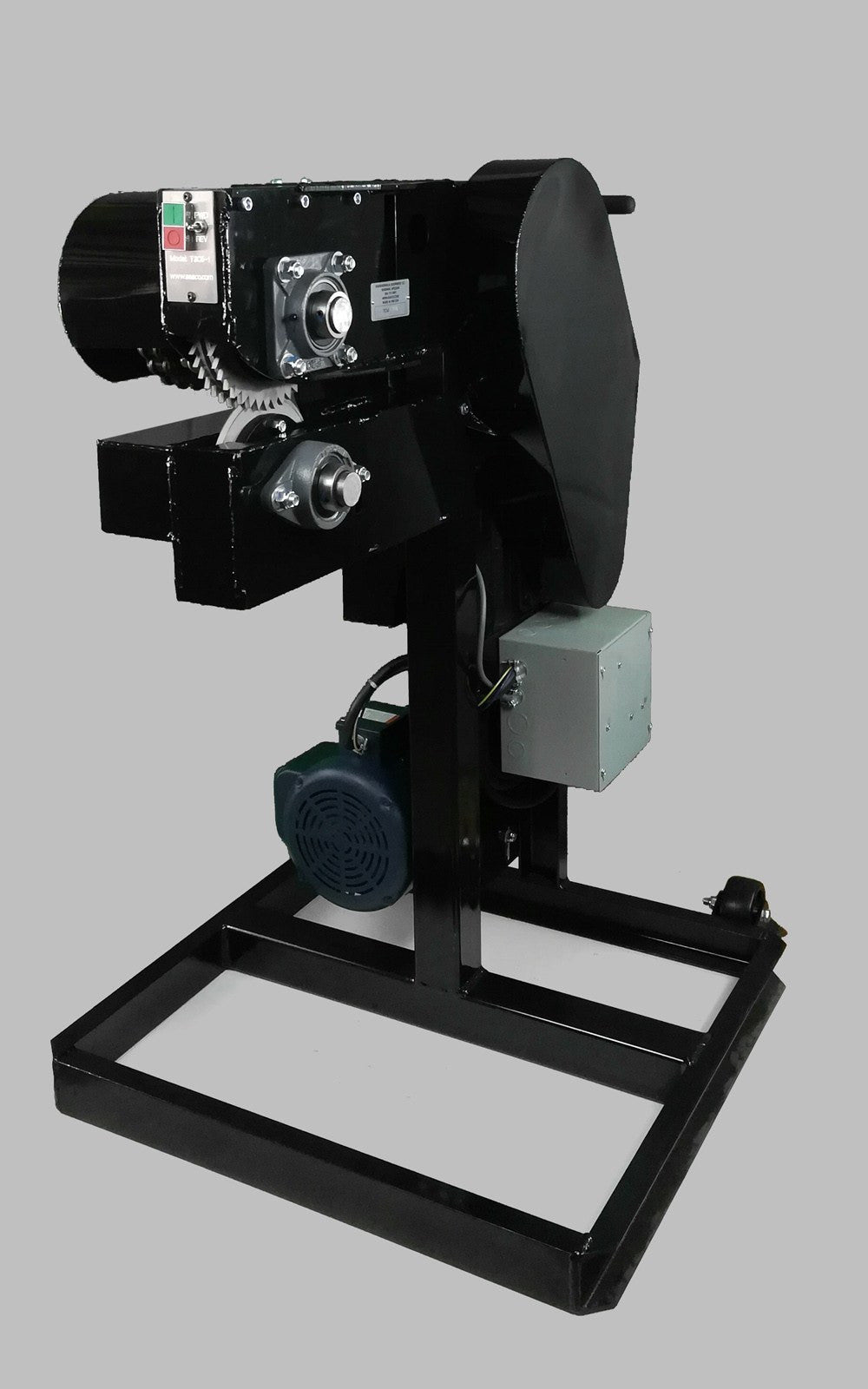

T3C5-1 Truck Tire Tread Cutter
Move your mouse over image to enlarge
T3C5-1 Truck Tire Tread Cutter T3C5-1 Truck Tire Tread Cutter

T3C5-1 Truck Tire Tread Cutter

Motor Type

Category: Stage 2, T3C

Type: Tire Cutting Machine


The Truck Tire Tread Cutter is very similar in design to our smaller Tread Cutter. With a heavier frame, a stronger gearbox, and a 5HP 220V Leeson motor; this machine will cut through any passenger, light-truck, or any tread up to 1.5 inches thick!  Our new model cuts through the tread after the sidewalls have been removed from truck tires, passenger car tires, aircraft tires, and super single tires.

Simply feed the tread into the cutting wheels; the wheels will pull the tread through as they cut. The production rate of the tread cutter matches that of the Truck Tire Sidewall Remover with a time per cut of 3 to 4 seconds. The 8" Cutting Blade for T3C5-1 Truck Tire Tread Cutter'>hardened steel cutting discs will cut 100,000 treads. The only maintenance required is to keep the drive chain lubricated and the belts adjusted.


FUNCTION:

Cross-cut passenger vehicle tires

  • Reduces volume
  • Pre-process before chipping/shredding
  • Make recycled products from the pieces



INPUT: TREADS RINGS
  • Treads from passenger car, light truck, truck, aircraft, and super single tires.



OUTPUT: TREAD BANDS
  • Tread Bands



PRODUCTION RATE: 1 TON/HR
  • Average 80 tires per hour



SIZE & WEIGHT:
  • Floor space: 33” x 33” (84cm x 84cm)
  • Weight: 450lbs (114Kg)



CUTTING SURFACE:



ELECTRICAL:
  • 5 HP Single-Phase Leeson TEFC Motor
  • 220v @ 60Hz standard, 220v @ 50Hz conversion available.
  • 25 Amp Peak Draw
