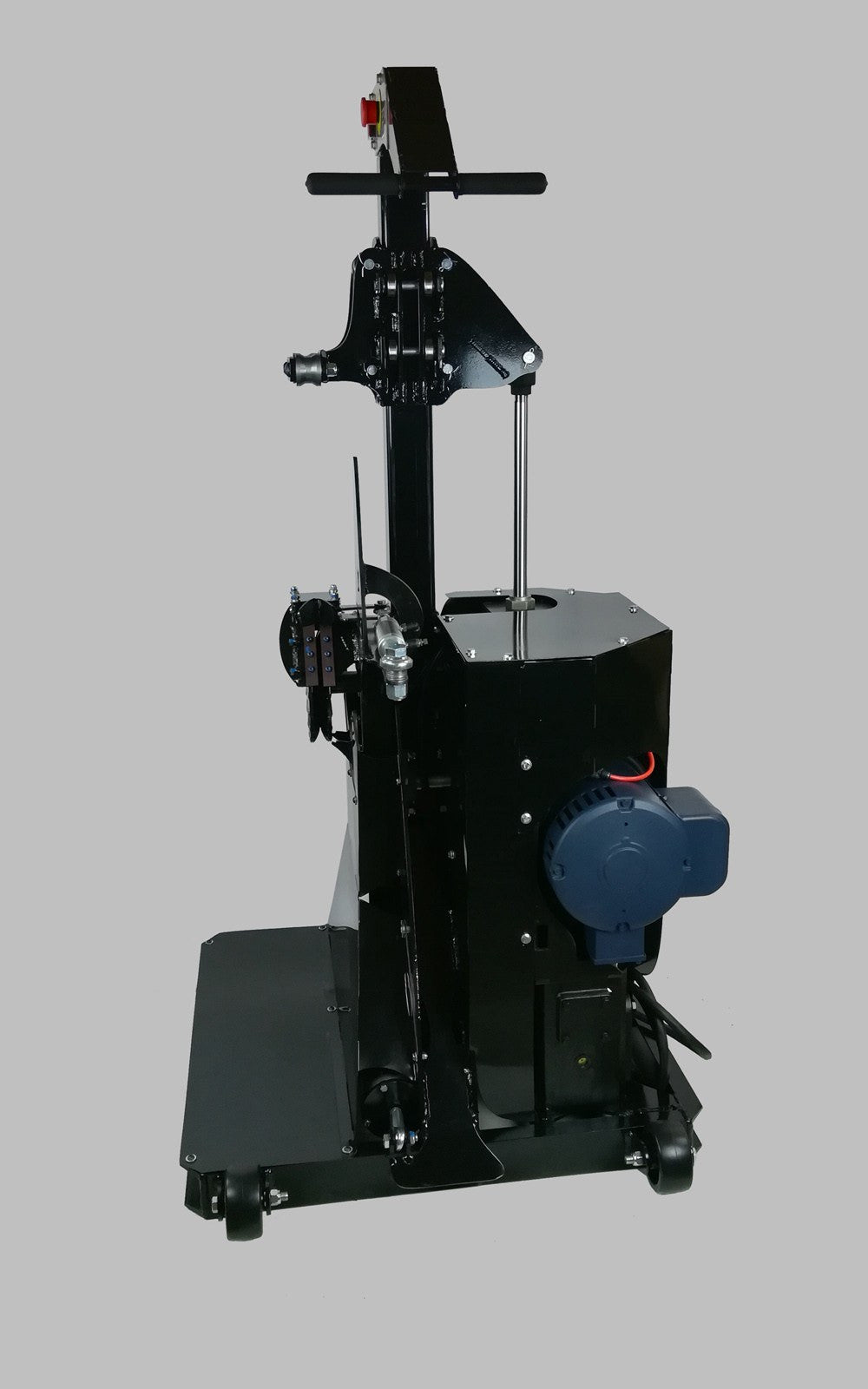

BWR5-1 Bead Wire Remover
Move your mouse over image to enlarge
BWR5-1 Bead Wire Remover BWR5-1 Bead Wire Remover BWR5-1 Bead Wire Remover BWR5-1 Bead Wire Remover BWR5-1 Bead Wire Remover

BWR5-1 Bead Wire Remover

Motor Type

Category: BWR, Stage 2

Type: Tire Cutting Machine


The BWR5-1 Bead Wire Remover will extract steel bead wires from passenger and light-truck tire sidewalls. Removing the sidewalls from the tread prior to extracting the beads is advised to maximize operator efficiency. We have made debeading sidewalls extremely easy with this machine. To operate, simply:

  1. Place the sidewall onto the tension rollers with the face of the sidewall pointing toward the operator.
  2. Push the green button to start the cycle.
  3. Allow the machine to fully extract the wire bead.
  4. Push the red button to stop the cycle and allow the tension rollers to retract.

There are 2 cutting devices on this machine, a cutting blade that makes an incision in the bead and a pair of diffuser plates that assist with bead extraction. The cutting blade is made from a specially hardened tool steel that can be ordered from EECO or any vendor that supplies the correct size lathe cut-off tool. The diffuser plates are currently only available from EECO as they are specifically machined and hardened to maximize longevity. The cutting blade and diffusers can all be sharpened many times before needing to be replaced; requiring only an angle grinder, a vise, and some skill.

Since extracted beads are free of their rubber casing, they can be recycled for monetary income at full market value.

Function:

Extract steel bead from tire sidewalls

  • Recycle beads for monetary income
  • Pre-process before chipping/shredding
  • Produce 100% steel free products from the pieces



Input: Sidewalls
  • Sidewalls from passenger cars and light trucks.
  • Minimum rim diameter: 13" (33cm)
  • Maximum rim diameter: 22" (55cm)



Output: Steel-Free Sidewall + Steel Bead
  • 1 Sidewall per tire, 100% steel-free.
  • 1 Steel Bead, extracted from rubber casing.



Production Rate: 0.5 Ton/hr
  • Average 180 sidewalls per hour



Size & Weight:
  • Floor space: 33” x 33” (84cm x 84cm)
  • Weight: 520lbs (236Kg)



Cutting surface:
  • Sharpened Tool Steel Blade
  • Hardened Steel Diffusers



Electrical:
  • 5 HP Single-Phase Leeson TEFC Motor
  • 220v @ 60Hz Standard, 220v @ 50Hz Conversion available.
  • 25 Amp Peak Draw
  • Requires plug for local electrical power, sold separately.
Compressed Air:
  • 110PSI (7.5 bar) @ 3-5CFM (142L/m)
  • Requires 1/4 female NPT quick disconnect.
